Carbonate scale forms when changes in water chemistry cause dissolved carbonate minerals, such as calcium carbonate, to precipitate from solution and deposit on surfaces. A common example is what forms inside your teakettle due to temperature changes. In mine water management systems, carbonate scaling in pipelines, settling ponds, and evaporation infrastructure can reduce flow capacity, increase maintenance needs, and drive long-term operational costs. As a result, accurate carbonate scaling risk assessments are critical to effective infrastructure design, operational planning, and long-term solids management. Effective scale management requires understanding whether carbonate scale will form, whether it can be prevented, and how infrastructure can be designed to control where precipitation occurs.
Geochemical Modeling for Carbonate Scaling Risk Assessment
Geochemical modeling with programs like PHREEQC or Geochemists Workbench is often used to evaluate scaling potential. In many mine water systems, carbonate precipitation is driven by CO₂ degassing when CO₂-rich water is exposed to the atmosphere, for example, when groundwater, pit water, or discharge water enters open channels, ponds, aerated conveyance systems, or sunlit evaporation areas. As dissolved CO₂ is lost to the atmosphere, pH increases, carbonate alkalinity shifts toward carbonate ion activity, and minerals such as calcite may become supersaturated.
Geochemical models provide valuable insight into scaling potential; however, the assumptions used in these models can significantly influence predicted outcomes.
Limitations of Equilibrium-Based Carbonate Scaling Predictions
Although geochemical models are useful screening tools, equilibrium-based simulations can carry substantial uncertainty when they do not account for field-scale kinetic limitations. In operating systems, mineral precipitation may be constrained by available nucleation surfaces, reaction rates, mixing conditions, residence time, and the degree of gas exchange. As a result, equilibrium calculations may represent a conservative upper-bound estimate of mineral mass rather than the amount likely to form under actual operating conditions.
If models are used without supporting field observations or validation testing, the resulting uncertainty can lead to overly conservative design assumptions. This may result in oversized infrastructure, excessive solids-handling capacity, or unnecessary treatment and maintenance provisions that increase project costs without improving long-term performance.
Kinetic Controls on Carbonate Mineral Precipitation
Kinetic rate expressions can be incorporated into geochemical models to reduce uncertainty associated with equilibrium-based scaling estimates. However, this approach introduces uncertainty in the opposite direction: kinetic models may underpredict mineral precipitation if the selected rate laws do not represent field conditions. For instance, many carbonate precipitation rate equations are derived from laboratory experiments conducted under controlled conditions, often after solutions have degassed and approached equilibrium. These experimental conditions may not capture field-scale disequilibrium, where rapid CO₂ degassing, changes in pH, and variable residence time can increase supersaturation, thereby promoting mineral precipitation. This uncertainty is especially important for infrastructure design because small differences in predicted precipitation rates can affect required pipe sizing, solids-handling assumptions, pond performance, and long-term maintenance planning.
An Integrated Approach to Carbonate Scaling Risk Assessments
To improve carbonate scaling risk characterization, multiple lines of evidence should support geochemical models, including field measurements and observed precipitation.
Common elements of this integrated approach are listed below:
- Field measurements of pH, alkalinity, oxidation-reduction potential (ORP), and dissolved CO₂ to capture in-place conditions relevant to carbonate chemistry and scaling potential.
- Laboratory analytical chemistry to provide reliable inputs for geochemical modeling and to support mass-balance calculations when estimating precipitation.
- Bench-scale testing (for example, Imhoff cone and partial-fill bottle tests) to directly observe whether precipitation occurs under controlled but representative conditions relevant to pipeline and evaporation infrastructure.
- Mineralogical evaluation of solids to identify which minerals are present and calibrate modeled scaling mechanisms.
- Geochemical modeling to evaluate the tendency for carbonate minerals to form under different conditions, including open- and closed systems, and changes in temperature or pressure.
This type of framework supports defensible decision-making by pairing predictive modeling with targeted measurements and validation tests, helping account for gas-exchange effects and kinetic limits that restrict mineral formation under real operating conditions.
Reconciling Carbonate Scaling Risk Assessments with Field Observations
Open-system geochemical models can predict substantial carbonate precipitation when CO₂ degassing raises pH and increases carbonate supersaturation. However, field observations and bench-scale testing may show limited mineral formation, suggesting that degassing, nucleation, or reaction rates are constrained under actual operating conditions. To reconcile modeled predictions with observed behavior, Imhoff cone testing and mass-balance calculations using analytical chemistry at pond influent and effluent locations can be used to estimate the amount of carbonate precipitating under site-specific conditions. In a recent study, these approaches were used to show that calcite precipitation was up to 10x lower than predicted by equilibrium models.

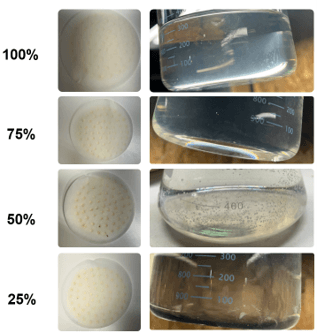

Under closed-system assumptions, geochemical models that retain dissolved CO₂ and limit pH increases often predict minimal carbonate scale formation. To evaluate this prediction, a recent bench-scale analysis was conducted using water samples placed in bottles filled to 25%, 50%, 75%, and 100% capacity to simulate varying degrees of airspace within a partially filled pipeline. After allowing the samples to fully equilibrate with the bottle headspace, the water was filtered and examined for precipitate formation.
The results demonstrated that even the 25% full bottles, which experienced the greatest CO₂ degassing and the largest increase in pH, produced no measurable calcite precipitation. For the water chemistry evaluated in this study, these findings suggest that calcite scaling is likely to remain limited in relatively closed systems, such as partially filled pipelines, consistent with geochemical model predictions.
Applying Carbonate Scaling Assessments to Infrastructure Design
When model predictions are supported by targeted field measurements, including dissolved CO₂, pH, and alkalinity, as well as bench-scale testing, they provide greater confidence in infrastructure design, solids management planning, and long-term operational strategies. This integrated approach helps utilities and mine operators optimize pipe sizing, evaluate solids accumulation, anticipate maintenance requirements, and better align scaling predictions with expected system performance.
Mineral scaling assessments are commonly applied to evaluate how geochemical conditions may affect the performance and long-term management of engineered and natural systems.
Representative applications include:
- Evaluating carbonate scale formation within a solution mining brine conveyance system.
- Assessing carbonate precipitation in a creek downstream of a coal mining waste pile to better understand potential effects on aquatic habitat.
- Simulating mineral formation in underground injection wells to support evaluations of well sealing performance.
- Predicting mineral accumulation and composition in proposed settling and evaporation pond designs.
These types of analyses provide insight into how site-specific water chemistry, operational conditions, and infrastructure design can influence mineral precipitation, scaling potential, and associated management considerations over time.
