At an active refinery corrective action management unit (CAMU), Trihydro implemented in situ soil neutralization & stabilization to cost-effectively address residuum & low pH conditions.

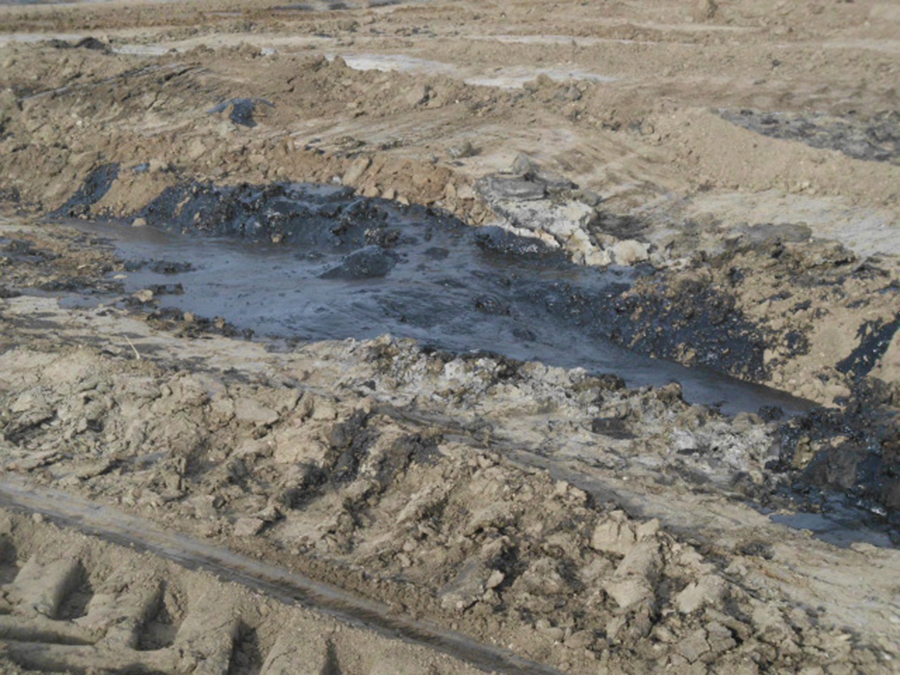

An active petroleum refinery in southern Wyoming had previously been used for residuum storage, including storing spent sulfuric acid from refinery processes. Subsurface investigations previously conducted by Trihydro identified widespread residuum and low pH conditions due to the co-mingling of spent sulfuric acid.

Trihydro was tasked with evaluating total excavation and disposal in an onsite corrective action management unit (CAMU) versus in situ soil treatment using industrial byproducts of other Wyoming industries. Based on the volume of the area and the potential costs associated with excavation (approximately $31 million for excavation and disposal costs), alternatives to excavation were explored.

An evaluation of in situ neutralization and stabilization was conducted and initial pilot testing showed that soil pH could be increased from existing levels to a pH of approximately 5.0 by mixing approximately 20% by volume of a neutralizing agent. Through research and discussion, precipitated calcium carbonate (PCC), a byproduct of the sugar refining industry, was identified as a potential effective neutralizing agent. PCC, which is a non-reusable resource for sugar facilities, was tested at pilot-scale and selected as an effective and cost-effective neutralizing agent for the acidic soils. Its use provided the added benefit of productive re-use of material that would otherwise be disposed as a waste.

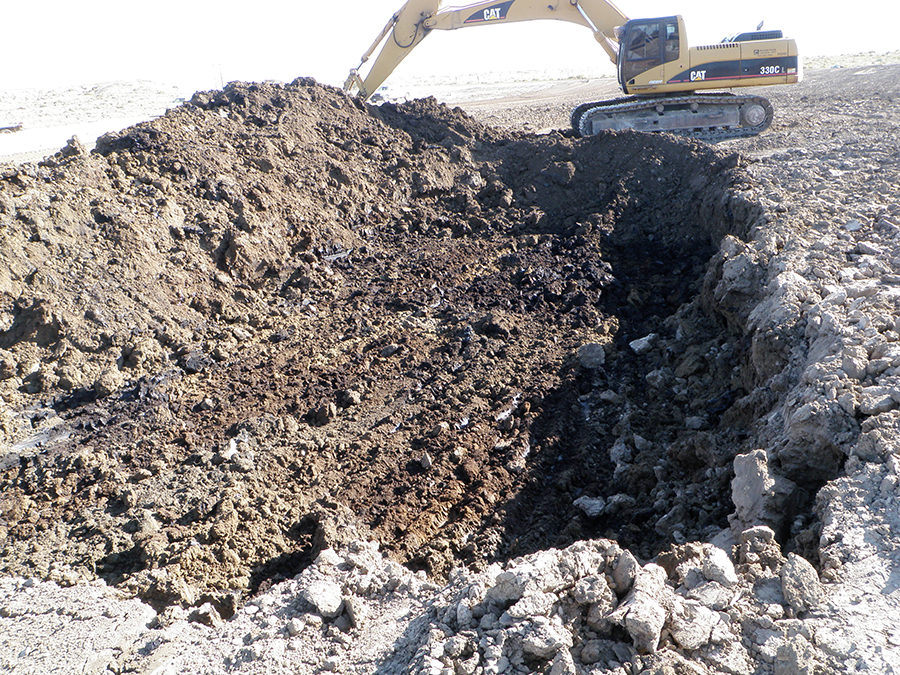

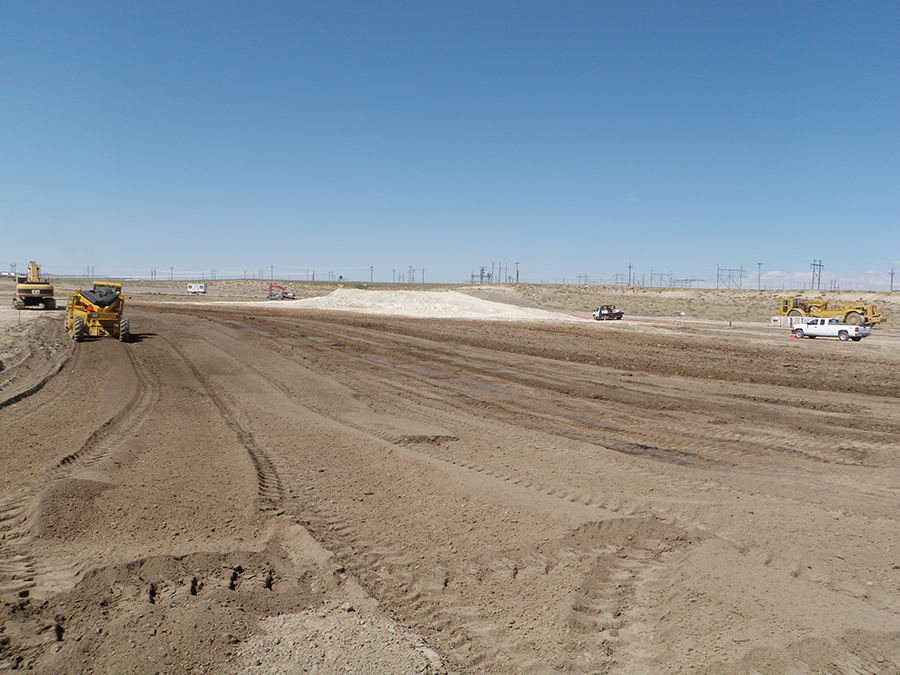

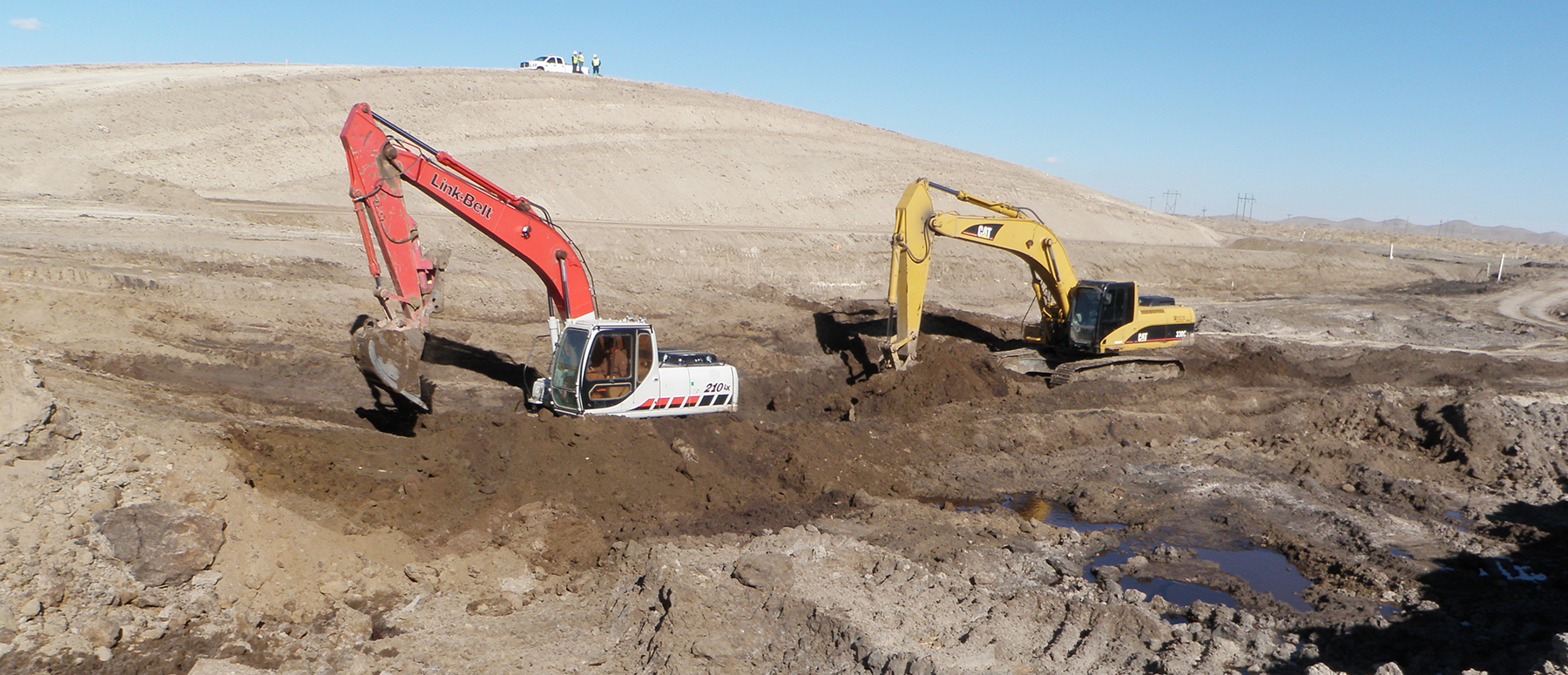

In addition to neutralizing the acidic soils, the asphaltic wastes/free residuum were mechanically stabilized in place to reduce residuum mobility in the soils. Stabilization was conducted by mixing impacted site soils with material from the surface (e.g. PCC, Portland cement, fly ash, or onsite soils) using an extended-reach track-hoe.

Innovative remediation techniques resulted in approximately $12.7 million in cost savings for the purchase of neutralization material as well as a reduction in CAMU construction costs from $29.8 million to $4 million.
